We are Manufacturers, Suppliers, Exporters & Services of CNC Controller Retrofitting, Fanuc, Siemens, Mitsubishi, NERI Controllers, CNC Controller Replacement and our setup is situated in Pune, Maharashtra, India.
- Nano CNC system combined with precise nano calculation and leading-edge servo technology
- Contouring Control effective for high-speed and high precision machining
- Smart Tolerance Control makes it easy to adjust the precision needed for machining
- Smart Overlap enables a shorter cycle time for machining parts
- Servo HRV provides high-speed and high accuracy
- Spindle HRV has high acceleration and high response
- FANUC SERVO GUIDE with quick and smart tuning
- Increasing the number of controllable axes makes it ideal for a wider range of machines
- 15 inch display unit is available in addition to the 8.4/10.4 inch display unit
- Loader is cost effective and easily configured with the new Loader Control function
- FANUC Platform enables the convenience of a PC in the CNC
- Support of various industrial networks and field networks
- Direct editing and operation of the CNC program on memory card

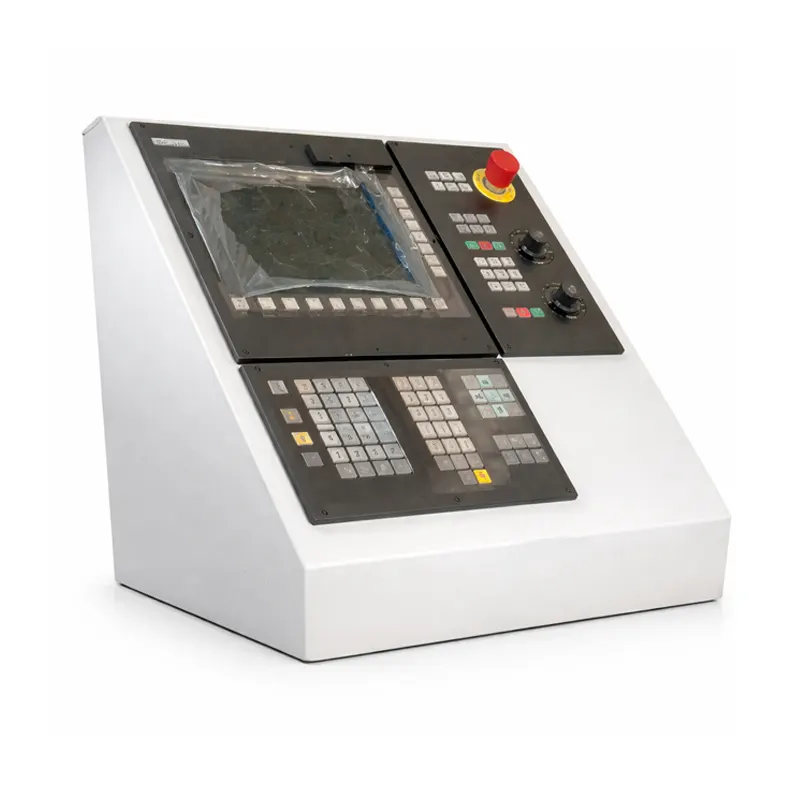

Due to the technology-specific system software, the field of application of the SINUMERIK 828 controls ranges from vertical and basic horizontal machining centers � including, of course, mold making applications � to flat and rotary grinding machines through to dual-channel turning centers with counterspindle, driven tools and Y axis.
- Panel-based compact CNC
- Turning, milling, grinding
- Up to 10 axes
- 2 machining channels
- 8.4” / 10.4” display

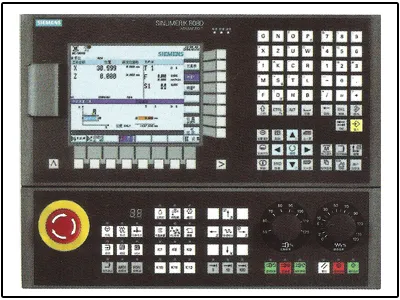

SINUMERIK 808D ADVANCED is perfectly preconfigured to meet the requirements of basic standard machines. SINUMERIK 808D ADVANCED together with SINAMICS V70 drive and SIMOTICS S-1FL6 motor guarantees a high system performance. The high-speed bus communication between CNC and drive ensures a close loop for the position control, which leads to a high accuracy and optimum cutting performance. The international first class CNC technology opens up unparalleled potential for basic turning and milling machines.
Typical fields of application :
With the support of up to 5 axis/spindle, the SINUMERIK 808D ADVANCED T system is sufficient for basic turning machines as well as for turning centers without Y-axis.
Thanks to the Advanced Surface function and the high dynamic SINAMICS V70 drive system, the SINUMERIK 808D ADVANCED M system also covers the machining of mold & die parts.
SINUMERIK 808D ADVANCED M offers a high price-performance ratio for basic milling machines.
- Higher cost-performance for realizing higher-grade machines
- High-accuracy tapping with high-speed compensation control of spindle and servo
- Simple programming system for machining center and lathe
- Development tools for providing a CNC with customized solutions
- Smoother cutting surface is achieved with one-nanometer position interpolation
- Cycle time reduced with higher machining-control performance High Speed Performance
- Multi-axis control and two-part systems for compatibility with various machines Multi Axis Max.
- Capacity Machining program capacity is greatly enhanced to the standard of 500kB [1,280m].
- Processing speed TypeA: 33.7k blocks/minute TypeB: 16.8k blocks/minute Machining program
- Multi-program Up to 20 PLC program files can be registered, which are executed according to priority.
- A PLC program can be split into each process and developed.
- High-speed PLC engine installed (TypeA) TypeA is equipped with a high-speed PLC engine, helps enhance the performance.
- Built-in PLC function M70series V Optimum Machine Response Direct Drive 20 PLC program files Start order management Memory

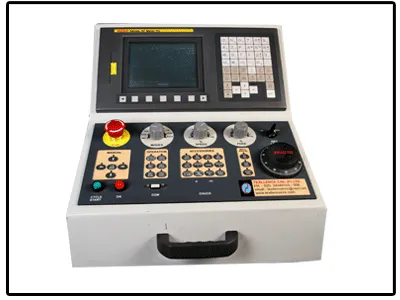

- NE-901XT is a fully digital CNC controller with servo/stepper motors & drives
- Suitable for lathe machines, SPM, or any 2-axis machines
- User-friendly system with simple and clear operation
- High performance-to-cost ratio
- 8.4-inch wide-screen LCD color display
- Input power: AC 220V
- AC frequency: 50Hz
- Output current range: 0-100 mA
- Output voltage range: DC 0V
- Spindle analogue output port
- Spindle encoder input port
- Square-wave differential receive
- Hand wheel (MPG) interface
- Maximum spindle speed: 8000 RPM
- Turret interface: 4 / 6 / 9 station
