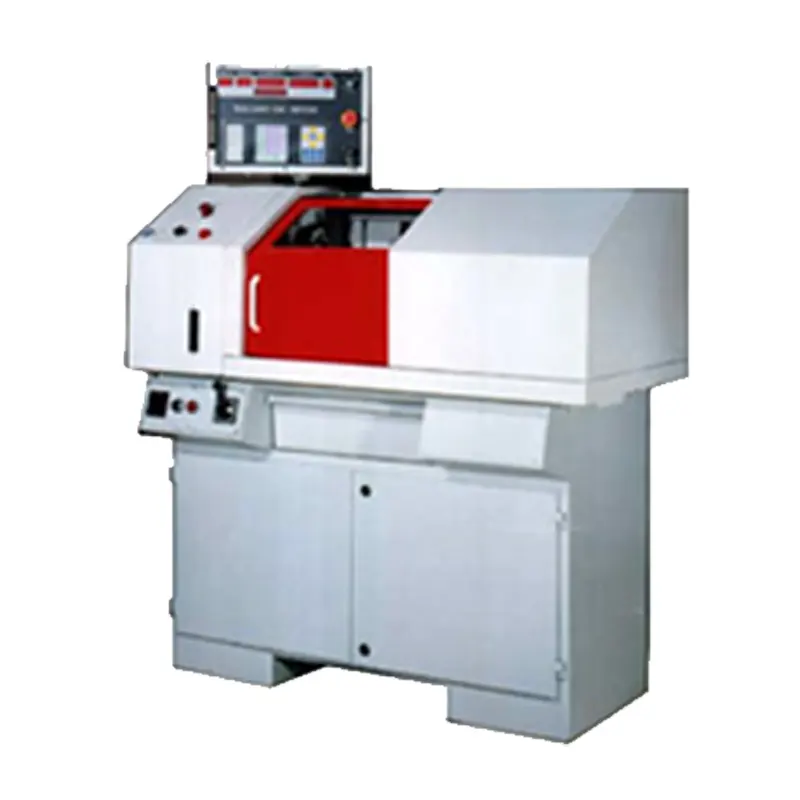

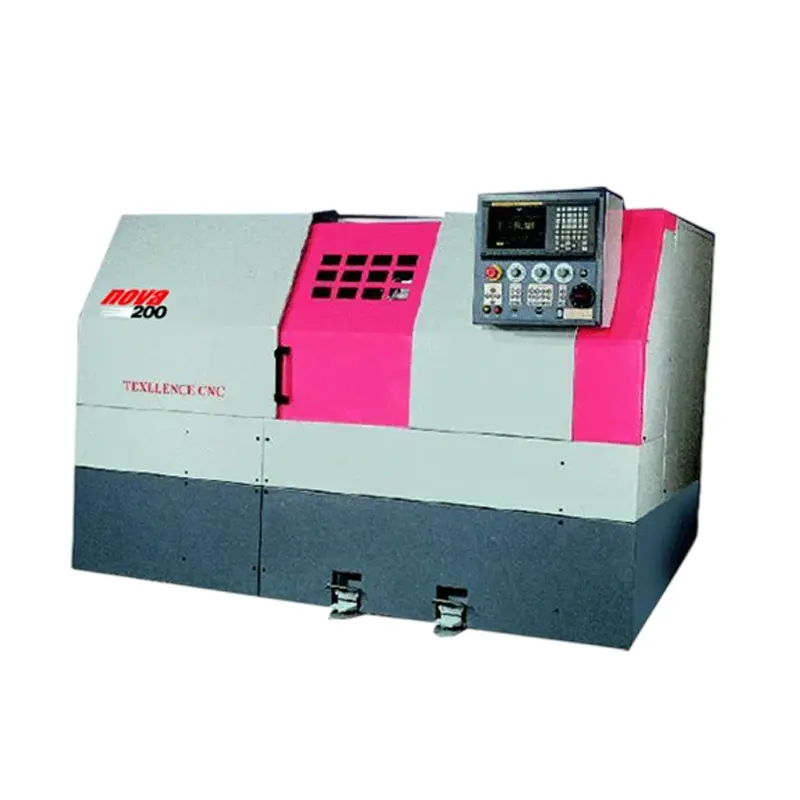

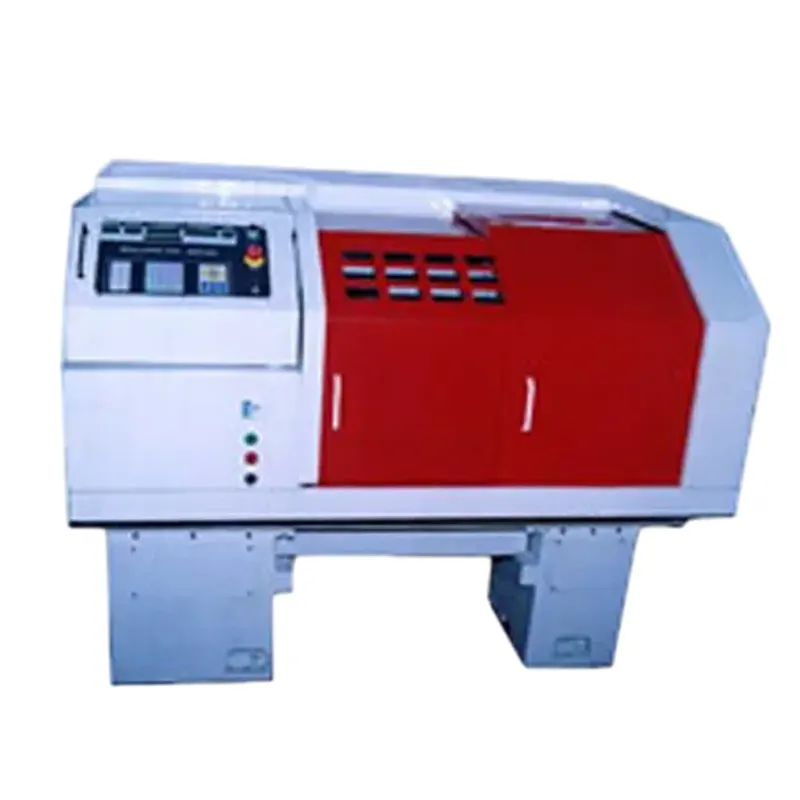

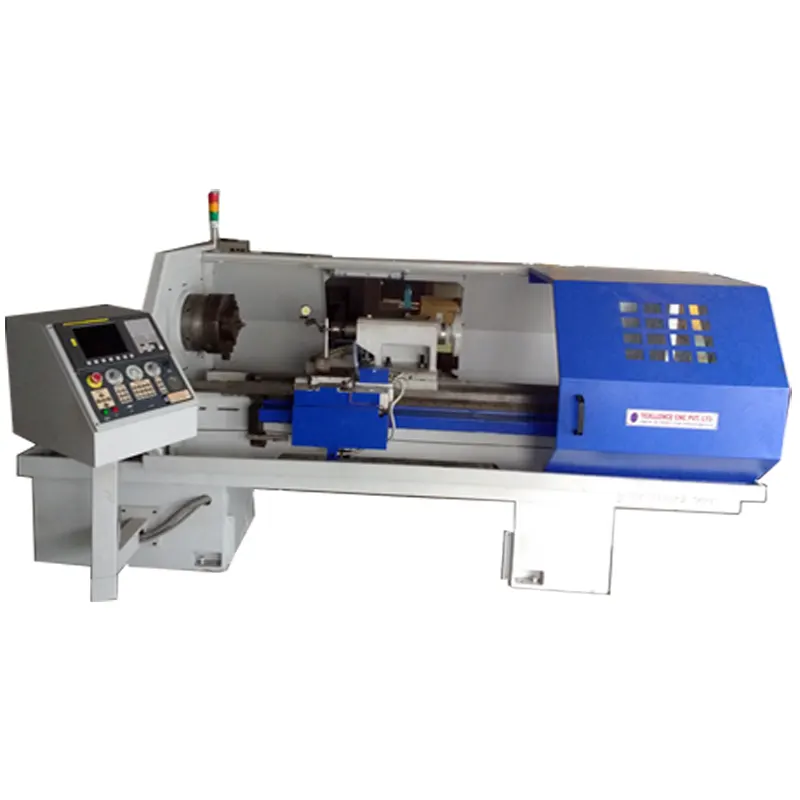

We are Manufacturers, Suppliers, Exporters & Services of CNC Lathe Machines and our setup is situated in Pune, Maharashtra, India.
FEATURES :
- C-5 Class Ball Screws
- Turcite Coated Slides
- Motorised Lubrication
- 4 / 8 / 12 Station Turret / Linear Tool Indexing
- Hydraulic / Manual Chuck
- Fully Enclosed Guards
- Well Enclosed Light Source
- Integrated Compact Cabinet
- Pendent or Integrated Console
- High Quality Powder Coating
- Coolant System 63 LPM
- Removable Chip Tray
- Controller - FANUC / SIEMENS / MITSUBISHI / NERI

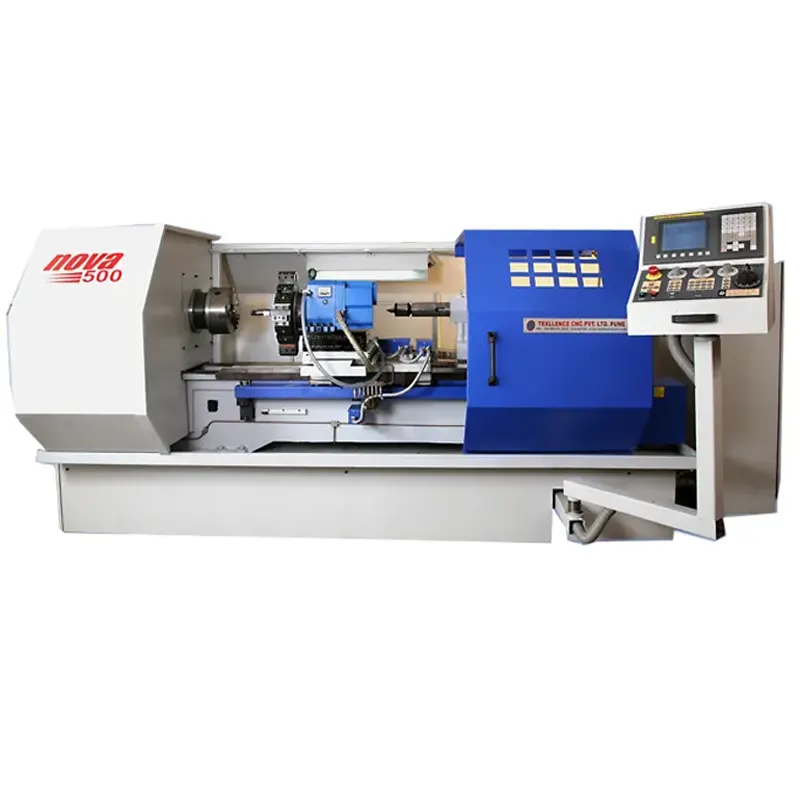

| Capacity | Unit | Nova 150 | Nova 250 | Nova 350 | Nova 500 | Nova 500 S |
|---|---|---|---|---|---|---|
| Swing Over Bed | mm | 300 | 400 | 500 | 600 | 1000 / 1300 |
| Swing Over Cross Slide | mm | 150 | 250 | 300 | 350 | 600 / 900 |
| Distance Between Centres | mm | 500 | 800 | 1000 | 1350 | 2000 / 3000 / 4000 |
| Maximum Turning Diameter | mm | 150 | 250 | 350 | 500 | 800 / 1200 |
| Bed Width | mm | 280 | 380 | 380 | 450 | 600 / 750 |
| Bed Angle | - | Flat | Flat | Flat | Flat | Flat |
| Head Stock | ||||||
| Spindle Nose | - | A2-4 | A2-5 | A2-6 | A2-6 (8) | A2-11 / 15 |
| Spindle Bore | mm | 32 | 40 | 52 | 65 (75) | 104 / 160 |
| Spindle Taper | MT | 4 | 5 | 6 | Metric 80 | MT5 in Sleeve |
| Chuck Size | mm | 125 | 200 | 250 | 315 (400) | 800 / 1200 |
| Speed Range | RPM | 6000 | 4000 | 3500 | 3000 (2000) | 275 / 1000 |
| Motor Power | kW | 2.2 / 3.7 | 5.5 / 7.5 | 7.5 / 11 | 7.5 / 11 | 15 / 18.5 / 22 |
| Tail Stock | ||||||
| Quill Diameter | mm | 40 | 60 | 60 | 96 | 104 |
| Quill Stroke | mm | 80 | 120 | 120 | 180 | 200 / 300 |
| Taper in Quill | MT | 3 | 4 | 4 | 5 | 6 |
| Axes | ||||||
| X Axis Stroke | mm | 150 | 200 | 200 | 250 | 500 / 650 |
| Z Axis Stroke | mm | 500 | 800 | 1000 | 1350 | 2000 / 3000 / 4000 |
| Ball Screws | mm | 25 | 25 / 32 | 25 / 32 | 32 / 40 | 32 & 50 |
