CNC Roll Turning Lathe Machines

We are Manufacturers, Suppliers, Exporters & Services of CNC Roll Turning Lathe Machines and our setup is situated in Pune, Maharashtra, India.

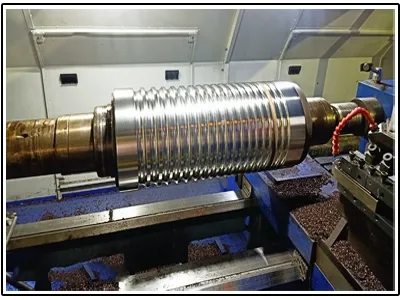

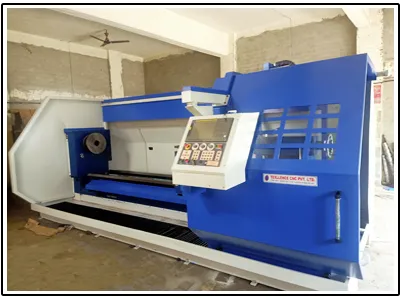

CNC Roll Turning Lathe


CNC Roll Turning Lathe
CNC Roll Turning Lathe

TECHNICAL SPECIFICATION

Parameters :
ROLL EXCEL 450
ROLL EXCEL 750
Capacity

Max. Roll Dia

450 mm

750 mm

Swing Over Bed

900 mm

1100 mm

Swing Over Cross-slide

450 mm

750 mm

Center Height

400 mm

550 mm

Max. Roll Length

2000/3000 mm

2000/3000/4000 mm

Guideway Width

560 mm

660 mm

Max. work-piece weight

3 Ton

4 Ton

Headstock

Spindle Bore

104 mm

104 mm

Spindle Speed

5 – 350 rpm

5 – 350 rpm

Spindle Taper

Metric 120

Metric 120

Chuck Spindle Dia. (4 Jaw + Heavy Duty)

500 mm

600 mm

Chuck Clamp Dia

65 – 400 mm

65 – 400 mm

Main Motor (with VFD):

20 HP

30 HP

Tailstock

Tailstock Spindle Dia.

150 mm

150 mm

Tailstock Spindle Travel

250 mm

350 mm

Tailstock Spindle

Built in center

Built in center

Axes

Rapid

4000 mm/min

4000 mm/min

Feed

0 – 3000 mm/min

0 – 3000 mm/min

Crosslide Servo Motor Rated Power

2.5 KW

2.5 KW

Longitudinal Servo Motor Rated Power

2.5 KW

2.5 KW

Crosslide Servo Motor Torque

22 N-m

22 N-m

Longitudinal Servo Motor Torque

22 N-m

22 N-m

Controller

FANUC/SIEMENS or equivalent

FANUC/SIEMENS or equivalent

Power Supply

415 V, 3 Ph.

415 V, 3 Ph.

Weight

8 Ton

11 Ton

Note: Specifications, Standard Accessories, options etc. indicated in this catalogue are subject to change due to continuous development.
